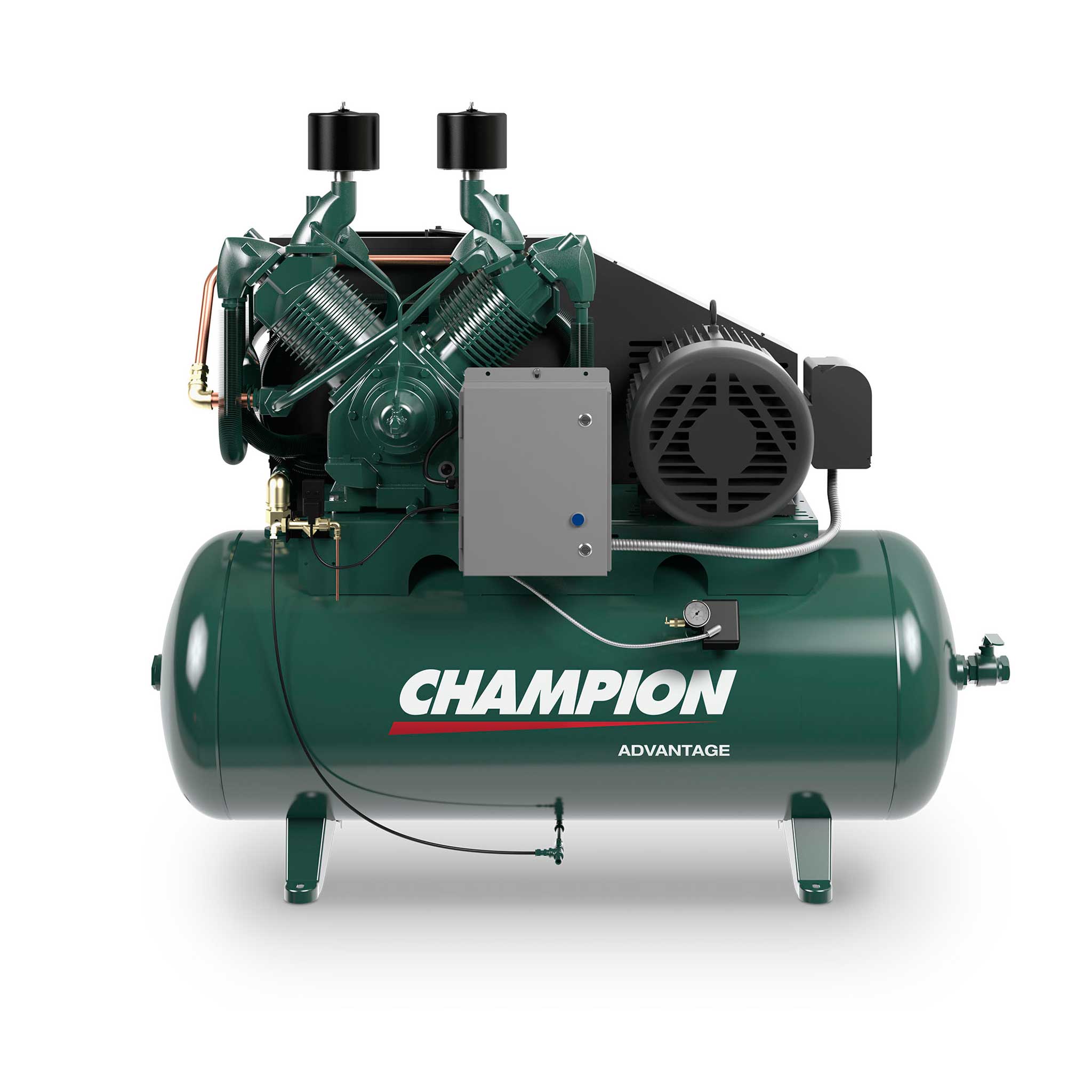

25 HP 120 Gallon Horizontal Champion Advantage Series Air Compressor Fully Packaged

FREE SHIPPING


Click to enlarge image(s)

FEATURES AND BENEFITS

(1) Motor starter mounted & wired -----saves on electrial wiring cost

(2) Low oil monitor mounted & wired-----stops motor when oil level is low

(3) Auto tank drain mounted & piped -----removes water from tank automatically

(4) Isolators pads -----protects unit from out-of-level floors & reduces noise

(5) Factory oil fill with ChampLub -----long pump life

(6) Aircooled aftercooler mounted & piped----- removes 70% of moisture

(7) Manual Dual Control------run stop-start or constant to save electrity

Don't see the Champion equipment or product you need on this site?

Email us at compressors@mcguire.biz or call us 1-888-229-9999

Champion offers thousands of options, equipment combinations and replacement parts. Let us know what you need and we'll do our best to help!

Specifications

CFM DELIVERED @ 175 PSIG	90.1

TANK CAP IN GALLONS	120

TANK TYPE	HORIZONTAL

PSIG OFF SETTING	175

PSIG ON SETTING	140

STAGES	2

PUMP RPM	770

MOTOR HP	25

VOLTAGE	NA

AMPERES	NA

HERTZ	60

PHASE	3

LENGHT IN	75

WIDTH IN	28

HEIGHT IN	64

WEIGHT LB	1365
