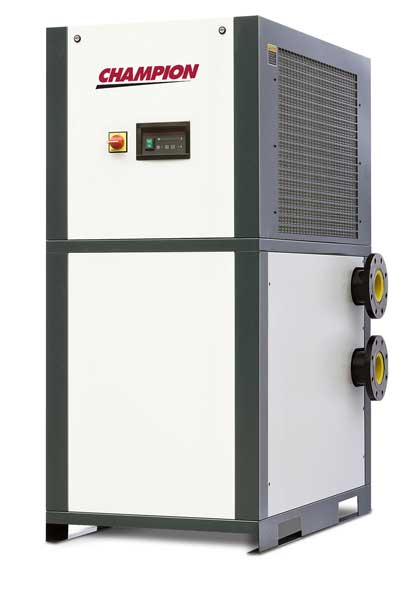

CHAMPION 1000 CFM NON CYCLING REFRIGERATED AIR DRYER
FREE SHIPPING
 |
|
Click to enlarge image(s)
|
The refrigerated compressed air dryer was created to meet IOS 8573.1 class 4 standard
Built-in separator captures solids
Unit protected from corrosion by Epoxy powder paint finish
Easy to use serviceability reduces maintenance cost of the 1000 CFM refrigerated air dryer.
AISI 316 Stainless steel heat exchanger----- Energy efficiency
TWO (2) Year Warranty on Compressor
FIVE (5) Year Warranty on Heat Exchanger
|
RATED CFM CAPACITY
|
1000
|
|
PRESSURE DEW POINT
|
38 F
|
|
CONTROLLER LEVEL
|
4
|
|
MAXIMUIM PSIG
|
250
|
|
PSIG PRESSURE DROP
|
3
|
|
REFRIGERANT TYPE
|
134A
|
|
DRAIN TYPE
|
TIMED
|
|
IN / OUT CONNECTIONS
|
4" FLG
|
|
H.P.
|
7.5
|
|
NEMA RATING
|
1
|
|
VOLTAGE
|
460
|
|
HERTZ
|
60
|
|
PHASE
|
3
|
|
HEIGHT IN
|
64
|
|
WIDTH IN
|
29
|
|
DEPTH IN
|
48
|
|
WEIGHT LB
|
786
|
