R-10D Champion 1-1/2- 3 HP Two Stage Splash Lubricated Basic Compressor Pump

R-10D Champion 1-1/2- 3 HP Two Stage Splash Lubricated Basic Compressor Pump

R-10D Champion 1-1/2- 3 HP Two Stage Splash Lubricated Basic Compressor Pump
Click to enlarge image(s)

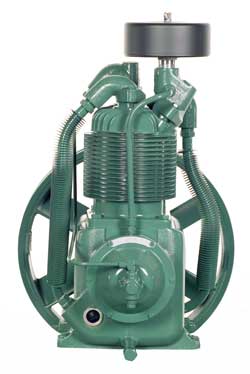

Champion R-10D Pump

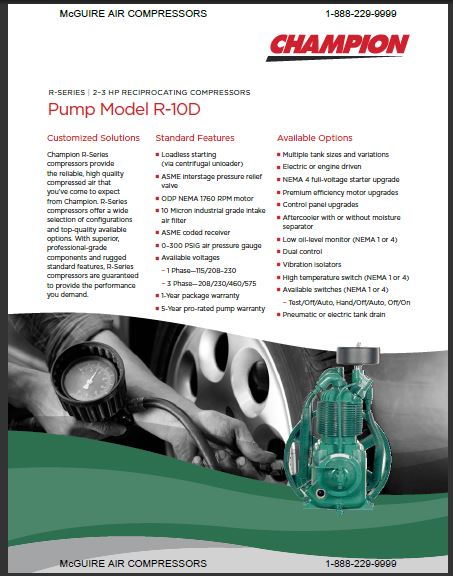

Download a FREE Brochure about the Champion R-10D Pump




Integral Cylinder / Head------No Head Gasket to Blow

Large Diameter Intercooler Finned Tubes-----Max Efficiency

High Flow Disc & Spring Valves-----Low Lift Long Life

Tapered Roller-Type Main Bearing----Longest Life

Automotive Type Inlet Filter-----Easy to Service

Oil Sight Glass-----Easy to Check Oil Level in the Two-Stage Compressor Pump

Pressure Relief Valves----Intercooler & Discharge

This air compressor pump features a centrifugal unloader for loadless starts.

1 year warranty when used as a replacement.

 If you require a unit with a higher level of horsepower, be sure to check out the 2 stage air compressor pump.

Specifications
HP RANGE 1.5---2
MAX PSIG 175
CFM RANGE 5.3---8.3
STAGES 2
C.F.DISP PER REV .01942
RPM RANGE 542---765
BORE L.P IN 4-5/8
BORE H.P IN 2-1/2
STROKE IN 2
CYLINDERS 2
LUBRICATION SPLASH
OIL CAPAICITY QT 2
DISCHARGE OPENING 3/4" TUBING
FLYWHEEL DIA IN 16.5
BOLTDOWN WIDTH IN 4-3/8
BOLTDOWN DEPTH IN 5-3/4
HEIGHT IN 24
DEPTH IN 20
WIDTH IN 17
WEIGHT LB 125
